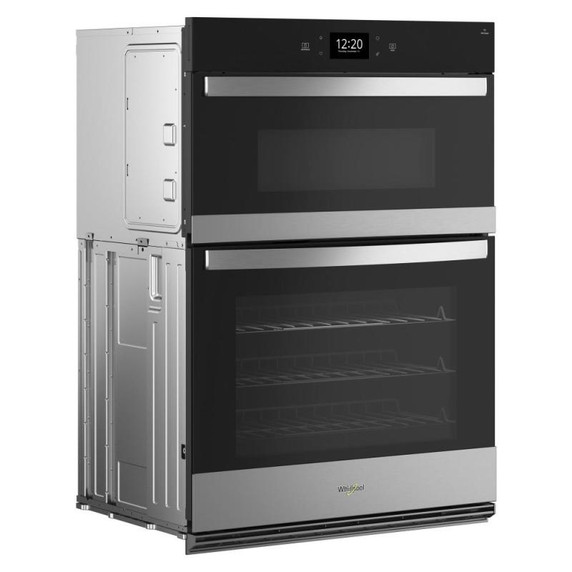

Smart Wall OvenWhen you’re busy elsewhere, use your smartphone to get dinner started by remotely preheating the oven. Or, when your hands are full, use your compatible voice-enabled device to adjust the cook time or temperature with a voice command.
8-in-1 Wall Oven with Air FryCook however you want with 8 cooking modes in one wall oven: Air Fry, Frozen Bake™, Keep Warm, Broil, Convect Broil, Bake, Convect Bake and Convect Roast. For even more cycles and enhanced performance over time, connect your appliance to receive Automatic Feature Updates.*
*Appliance must be connected. Wifi & App Required. Features subject to change. Details and privacy info at Whirlpool.com
5.0 Cu. Ft. Oven CapacityEasily cook large meals with 5.0 Cu. Ft. Oven Capacity.
Automatic Feature Updates When Connected*
*Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.Select Whirlpool® Smart Appliances get smarter over time with new cycles and automatic updates* to enhance performance. Once your appliance is connected, it downloads updates and adds new cycles as they’re released.
*Appliance must be connected. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.

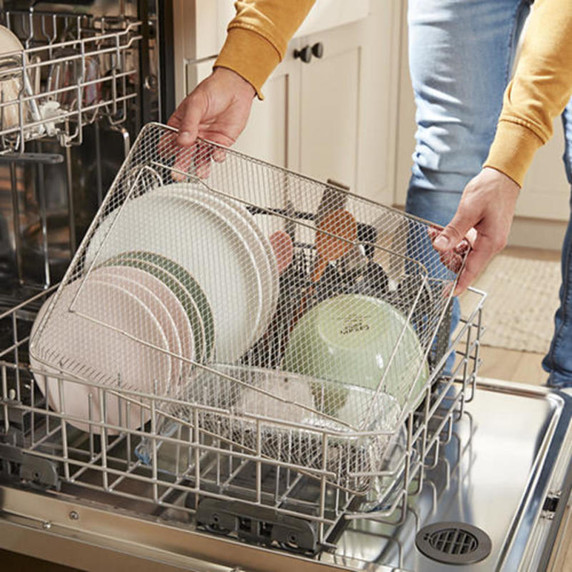

Dishwasher-Safe Air Fry BasketFor easy cleaning, put the included Dishwasher-Safe Air Fry Basket right in the dishwasher when it gets messy.
Air Fry ModeSkip preheating and air fry chicken nuggets, wings, fries and more to get crispy results right in your oven. The Air Fry Mode circulates hot air around the air fry basket to cook fried food in a healthy way, with less oil than traditional frying.
1.4 Cu. Ft. Microwave CapacityFit most dishes for your family meals with 1.4 Cu. Ft. Microwave Capacity.
6.4 Cu. Ft. Total CapacityEasily cook a whole meal with 6.4 Cu. Ft. Total Capacity.
True Convection with Third Heating ElementBake multiple dishes using a third heating element and a fan to more evenly distribute hot air around the oven.*
*Compared to a traditional thermal-bake cycle on the same model.
Adjustable Self-Clean CycleClean without harsh chemicals using the high temperature self-clean cycle. Adjust the cycle for various soil levels to keep your oven looking clean.
Frozen Bake™ TechnologySkip preheating and cook frozen favorites like pizza in fewer steps with preprogrammed settings that automatically adjust cooking times for you.
Keep Warm SettingKeep dishes from getting cold with this setting that delivers low heat to the oven while you finish preparing your meal.
BroilWhen you place food close to the oven’s top heating element using the Broil Setting, you can quickly sear meat, char vegetables, brown lasagna, caramelize the top of a casserole and more.
Convect BroilWhen cooking thicker cuts of meat like bone-in chicken or steaks over an inch thick, use the Convect Broil setting to brown the top while still keeping the hot air circulating around the food in the oven to cook your food.
BakeCook your favorite treats like cookies, pies, cakes or muffins with the Bake setting that uses hot air to cook food inside the oven.
Convect BakeConvect Bake uses the bake, broil, and ring heating elements along with a fan to distribute hot air more evenly when cooking on multiple racks.*
*Compared to a traditional thermal-bake cycle on the same model.
Convect RoastCook foods such as chicken and turkey with the Convect Roast setting that uses high heat from the bake, broil, and ring elements with the fan to circulate air around the oven cavity.
Rapid PreheatSave time with faster preheating.* A rear fan combined with the use of all of the elements helps to heat the oven quickly.
*Single-rack baking with Rapid Preheat option versus three-rack without option.
Voice Control with a Compatible Voice-Enabled Device*
*U.S. only.Control your kitchen no matter what you’ve got on your hands with simple voice commands using the Google Assistant or an Alexa-enabled device.*
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.

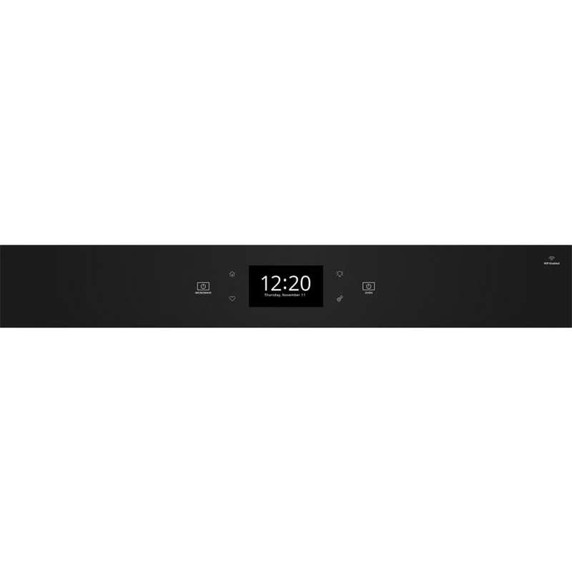

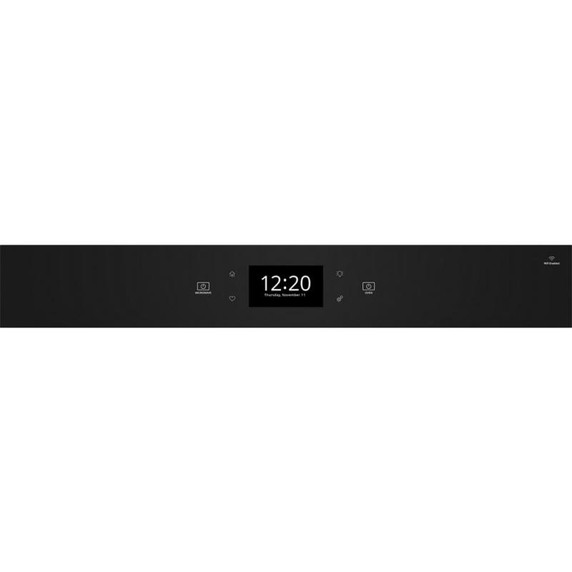

TouchscreenGet instant access to the settings you use most with a 4.5" full-color Touchscreen display.
FavoritesMake your favorite cooking settings easy to access by creating and saving them right in the Whirlpool® App or directly on your appliance.*
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
Assisted CookingAssisted Cooking cycles calculate and set the ideal cooking time and temperature for common foods like casseroles, meat, fish, vegetables, pizza and some baked goods.
Scan-to-Connect Technology*
*U.S. only.You don’t need to be a tech expert to connect your new appliance. Simply open the Whirlpool® App, add your appliance and follow the guided experience to get up and running.*
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
Remote StartWhen set to remote enable, use your smartphone or tablet to remotely turn your oven on so it’s heated up and ready to cook meals when you are.*
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
Multi-Step CookingMake multi-step meals more simple. Use your smartphone or tablet to send multiple cooking instructions to the oven all at once.* The temperature automatically adjusts based on the recipe you enter for great results.
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at whirlpool.com/connect.
Hidden Bake ElementThe hidden bake element is sealed under the oven floor to protect it from spills and drips.
Delay StartProgram the oven to start baking at a future time so you can move onto other things, and still get dinner to the table on time.
Control Lock ModeDisable the control panel to avoid unintended use and easily clean controls.
Convection ConversionEasily get the right convection cooking temperature. Your oven automatically converts traditional recipes for convection cooking, adjusting cooking times and temperatures for you.
Extra-Large Oven WindowKeep an eye on your meal through the Extra-Large Oven Window.
Sabbath ModeUse Sabbath Mode to keep the oven on the Bake setting at a set temperature which allows for cooking or warming food until it's turned off. When this mode is enabled, displays, tones and all other cooking and cleaning cycles are disabled.
CleanRelease® Non-Stick InteriorHelp prevent spills from sticking in the microwave with the CleanRelease® Non-Stick Interior, which lets you easily clean up with the simple wipe of a damp cloth.
Sensor CookingThis intuitive sensor detects humidity released by food as it cooks, determining the precise cooking time and power level for optimal doneness of each dish.
Steam Cooking
*Accessory sold separatelyClear up cooktop space by steaming foods like vegetables and fish right in the microwave. Steam accessory available separately.
Turntable On/Off OptionChoose whether the microwave turntable rotates or not to accommodate a wide range of dish sizes.
900-Watt Cooking PowerGet quick cooking with 900 watts of cooking power in the microwave.
Add 30 Seconds OptionThis one-touch button allows you to instantly add 30 seconds to any microwave cycle that is already in progress.
FIT System Limited GuaranteeThe FIT System Limited Guarantee ensures your new Whirlpool® Wall Oven will fit or get up to $300 toward cabinet modification.*
*Fit System Limited Guarantee: On 27"" and 30"" Whirlpool® wall ovens. Excludes new cabinet installations. Offer valid for qualified models of a compatible width and dates specified. Visit www.whirlpool.com/fit-guarantee.html for complete details.
An American Company for Over 100 YearsWhirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
Control TypeElectronic
Display ColorFull Color
Cooking Power Watts900
ConvectionYes
Door SwingDrop Down
GrillYes
Interior LightYes, Halogen
Microwave Capacity Cu Ft1.4
TurntableYes
Turntable Diameter Size In14.13
Hz60
Volts240
Power Cord IncludedNo
Amps30
Fuel TypeElectric
ConnectivityApp; Remote Access; Voice Controlled; WiFi
Annual Energy Usage Kwh363
Country Of OriginUSA
Sabbath ModeYes
Extended Service Plan Parent
Product To Product Pairs
Optional AccessoriesW11551866, W11570323
Language ConversionEnglish/French/Spanish
Sensor CookingYes - Microwave
Oven SelectionsAir Fry; Auto On; Bake; Broil; Cancel/Off; Clock; Control Lock; Cook Time Indicator; Delay Start; Favorites; Frozen Bake; Keep Warm/Warm Hold; Language Conversion; Rapid Preheat; Sabbath Mode; Start Time; Stop Time; Temperature-Sensor Baking; Timer
ULYes
CULYes
Energy Rating Kwh Year363
Handle MaterialMetal
Handle ColorStainless Steel
Oven ConfigurationMicrowave Combination
Size In30
Hidden Bake ElementYes
Oven Cleaning TypeSelf-Clean
Oven Light TypeHalogen
Bake Element Power2800W
Broiler Element Power3600W
Interior ColorGrey
Number Of Oven Lights2
Number Of Rack Guides6
Oven Interior Depth In Inches19.0
Oven Interior Width In Inches25.0
Interior CoatingPorcelain
Number Of Bake Elements1
Number Of Broil Elements1
Oven Interior Height In Inches18.0
Number Of Oven Racks3
Convection FunctionsBake, Broil, and Roast
Oven Capacity Cu Ft5
Carton Depth31.0"
Carton Height46.0"
Carton Width35.0"

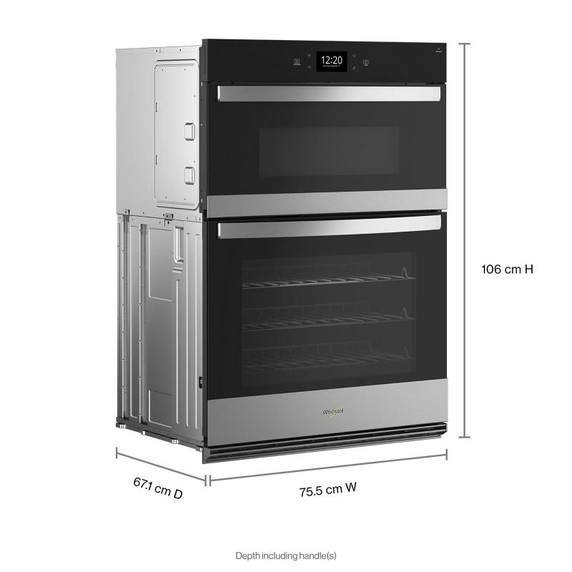

Depth Closed Excluding Handles24.44"
Depth Closed Including Handles26.44"
Depth With Door Open 90 Degree46.19"
Depth26.44"
Gross Weight229.0 lbs.
Height41.75"
Net Weight207.0 lbs.
Width29.75"
Cutout Depth24.0"
Cutout Height41.31"
Cutout Width28.5"
Capacity FT3 (cubic feet)6.4
