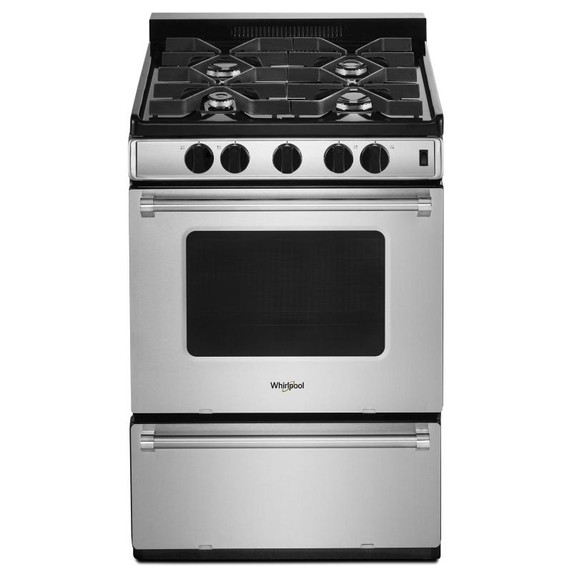

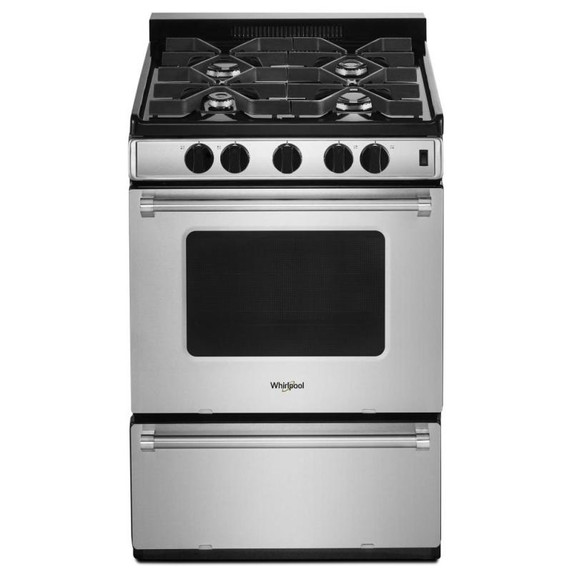

Whirlpool® 24-inch Freestanding Gas Range with Sealed Burners WFG500M4HS

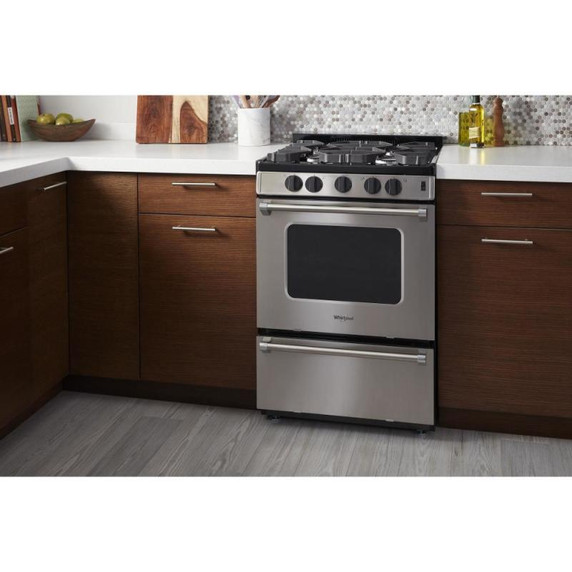

Small Space SolutionServe up big meals, even in small spaces, with a 3.0 cu. ft. range made to fit your family's needs.
ADA CompliantThis range meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.

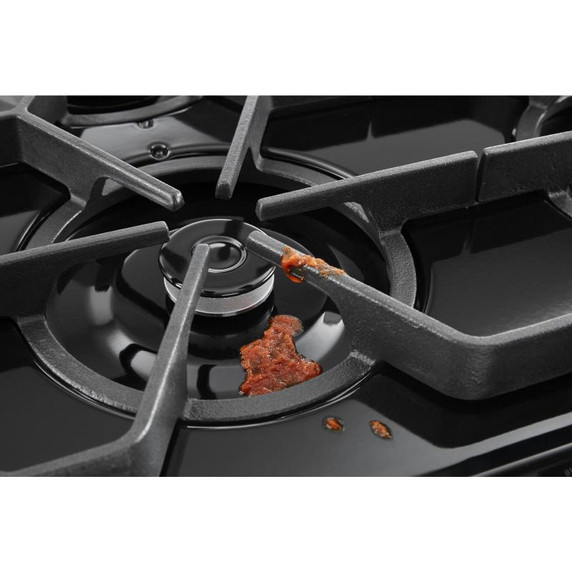

Sealed BurnersCut down on cleanup with burners that are sealed to prevent food from falling into them.
AccuSimmer® BurnerEasily maintain low, even heat when cooking sauces and soups with the AccuSimmer® burner, which reduces power for better control at lower temperatures.
High-Powered BurnerQuickly sear and boil with a high-powered burner when you need to serve up dinner fast.
Dishwasher-Safe Cast-Iron GratesWash these cast-iron grates right in the dishwasher when they get messy, thanks to a dishwasher-safe finish that makes them easy to clean.
Broiler DrawerUse high heat to quickly melt, brown or crisp your favorite dishes with a broiler that has its own drawer.

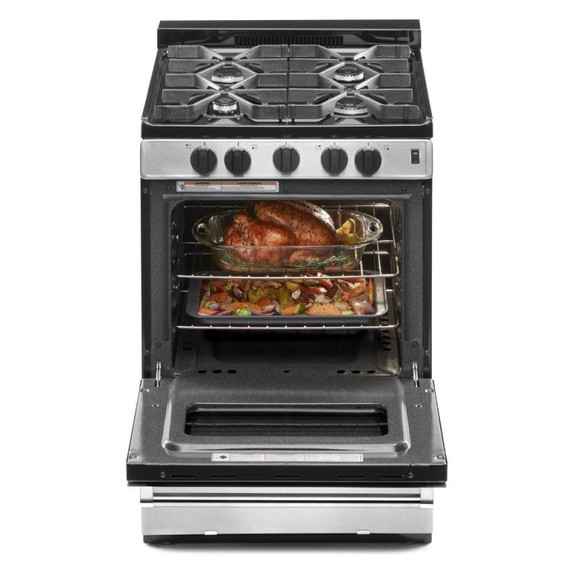

Oven WindowKeep an eye on your meal through the oven window.
Controls

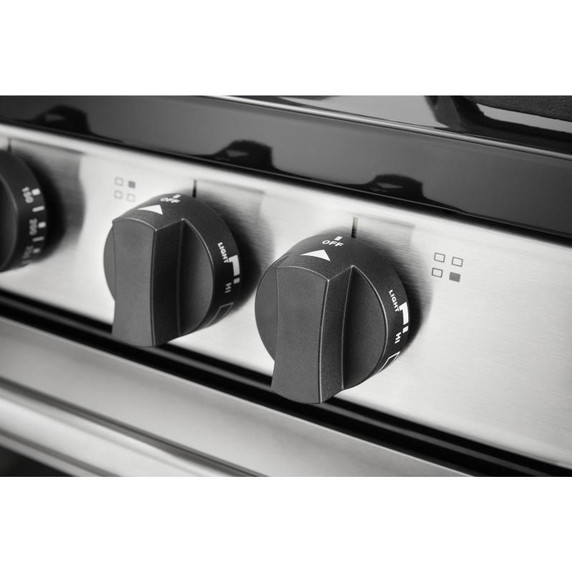

Knob TypePlastic
Knob ColorBlack
Electrical
Power Cord IncludedYes
Configuration and Overview
Fuel TypeGas
Compatibility
Connectivity
Works With
Specifications
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainPorcelain Coated Grates
Optional Accessories4396096RB
Product To Product PairsWVU37UC4FS
Extended Service Plan ParentEW07IW4Y, EW07IW2Y, EW07IW1Y
Features
Hot Surface Indicator LightNo
LP ConvertibleYes
Natural Gas ConvertibleYes
GriddleN/A
Power Outage CompatibleNo
Automatic Convection Conversion Temperature AdjustNo
Heating Element On Indicator LightNo
Total Gas Btus Cooktop42,100
Total Gas Btus Oven S17,000
Refinements
Whr RangeADA Compliant
Certifications
ULYes
ADA CompliantYes
CULNo
Exterior
Handle MaterialMetal
Handle ColorStainless Steel
Door RemovableYes
Drawer TypeBroiler Drawer
Handle TypeReach-Through Handle
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationFreestanding
Description
Size In24
Range TypeFreestanding
Details
Cooktop Surface MaterialPorcelain Coated Steel
Oven Control LocationFront Control

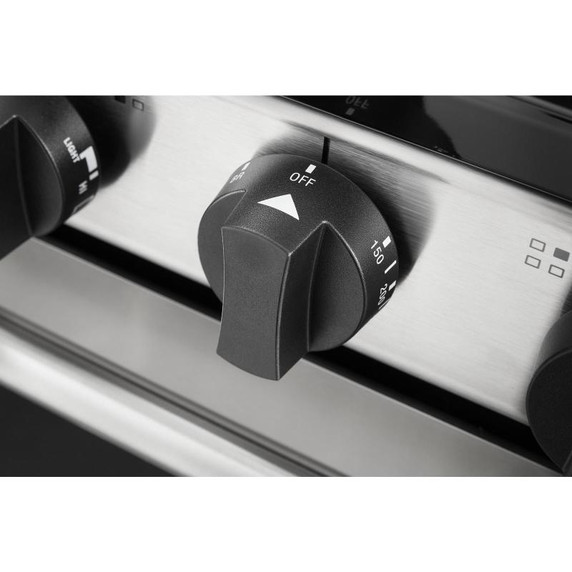

Oven Control TypeKnobs
Oven Light Switch LocationOven Control
Interior ColorGrey
Number Of Oven Racks2
Number Of Oven Lights1
Oven Light TypeIncandescent

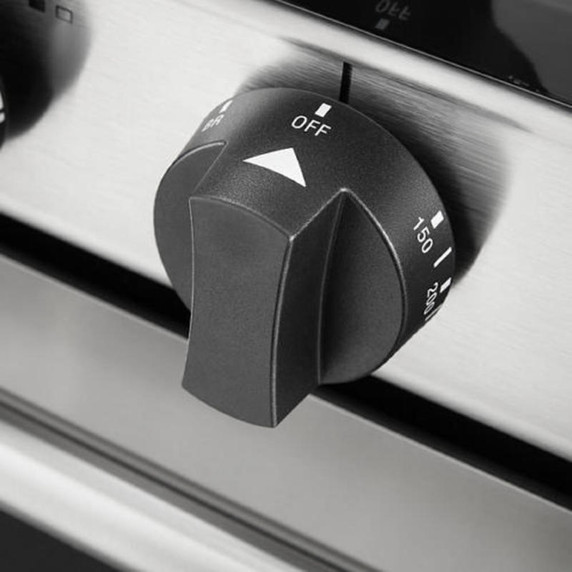

Oven Control Knob TypePlastic
Oven Control Knob ColorBlack
Oven Rack TypeStandard
Oven Cleaning TypeManual Clean
Number Of Rack Guides4
Broiler LocationDrawer
Oven Interior Depth In Inches18.0
Oven Interior Width In Inches19.0
Convection FunctionsNo

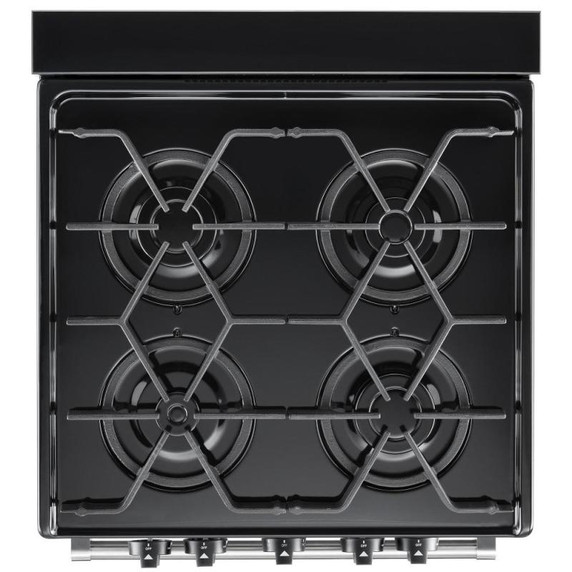

Cooktop Details

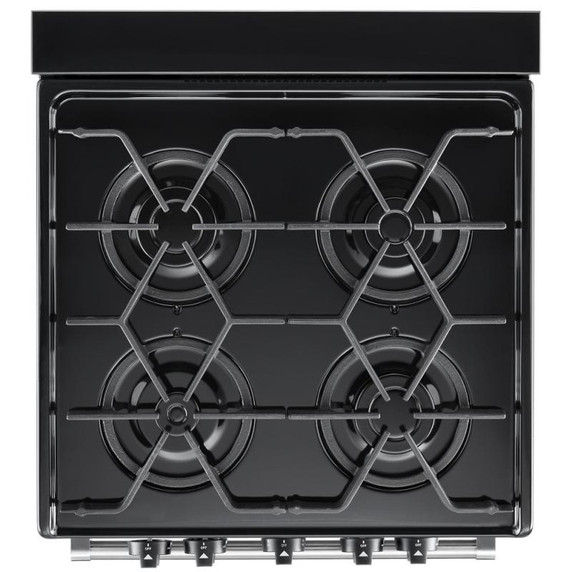

Cooktop Element StyleSealed Burners
Cooktop Control LocationFront
Cooktop Control TypeKnobs
Cooktop Surface ColorBlack
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Rear Element Burner TypeStandard
Left Front Element Burner TypeSimmer
Left Rear Element Burner Power15000BTU
Right Front Element Burner Power12000BTU
Right Rear Element Burner Power9100BTU
Right Front Element Burner TypeStandard
Number Of Grates2
Left Front Element Burner Power6000BTU
Ignition TypeÉlectroniques
Grate DetailsContinuous; Dishwasher Safe; Matte Finish; Porcelain Coated Cast Grates
Carton Depth29.0"
Carton Height43.5"
Carton Width26.5"
Depth Closed Excluding Handles26.0"

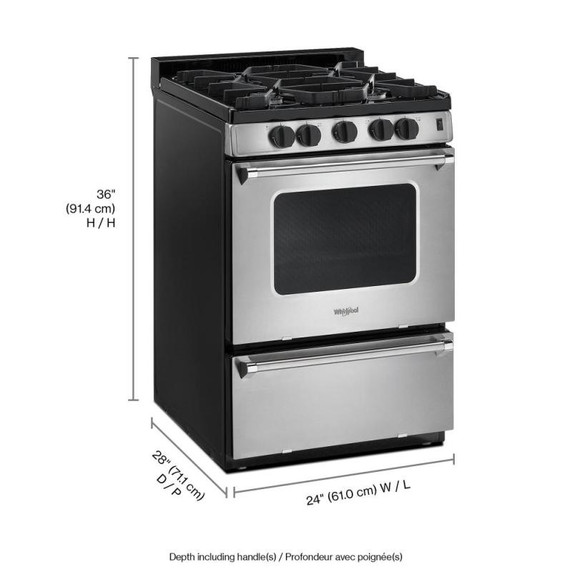

Depth Closed Including Handles28.0"
Depth With Door Open 90 Degree42.5"

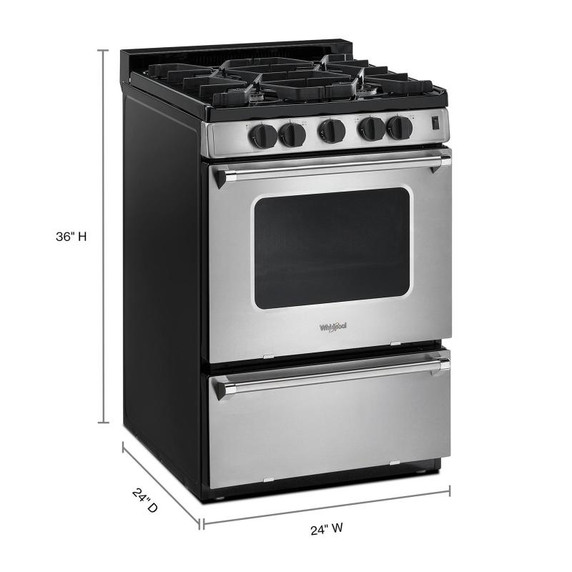

Depth24.0"
Gross Weight176.5 lbs.
Height36.0"
Maximum Height36.75"
Minimum Height36.0"
Width24.0"
Cutout Depth24.0"
Cutout Width24.19"
Capacity FT3 (cubic feet)2.96
