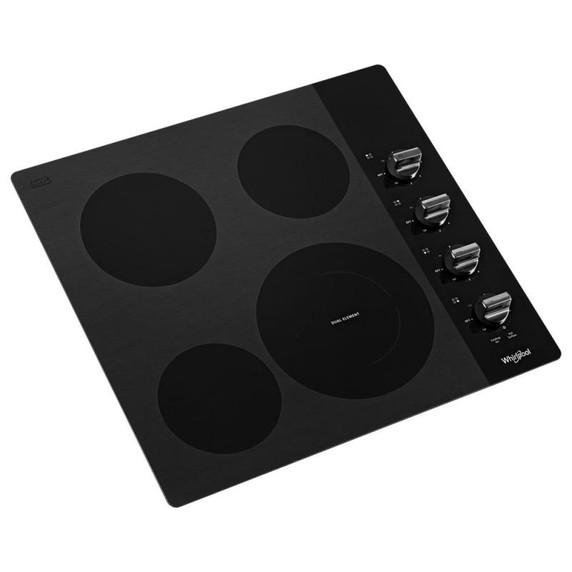

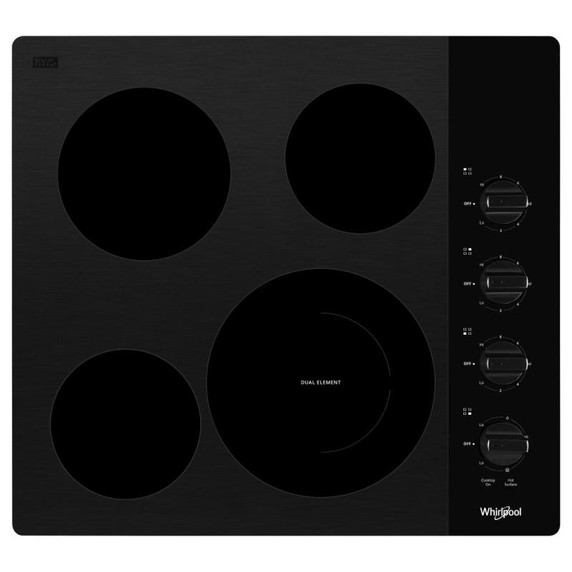

Whirlpool® 24-inch Compact Electric Ceramic Glass Cooktop WCE55US4HB

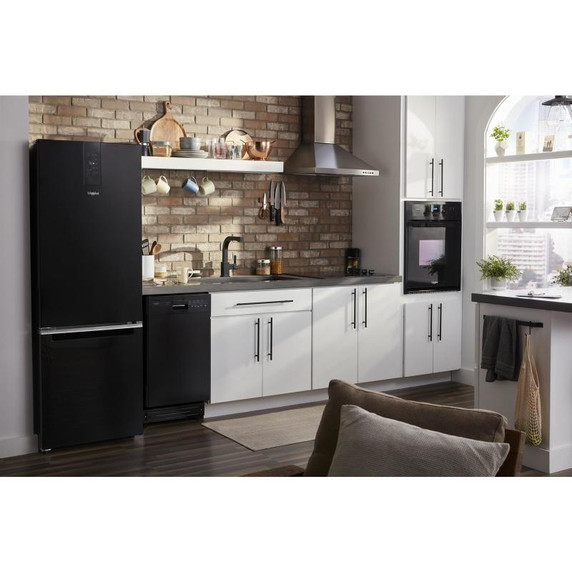

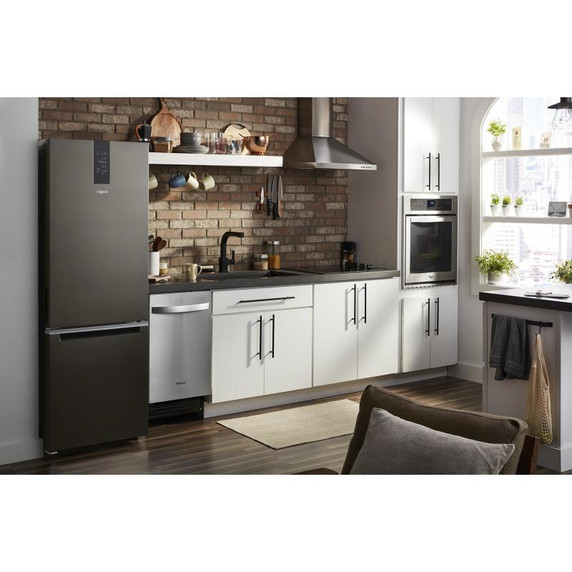

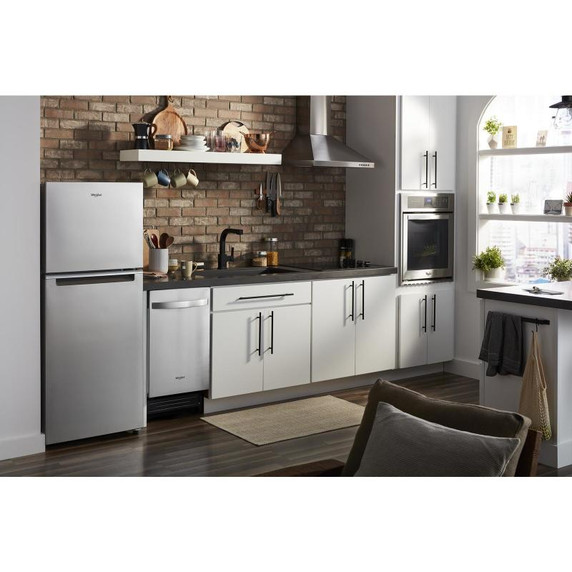

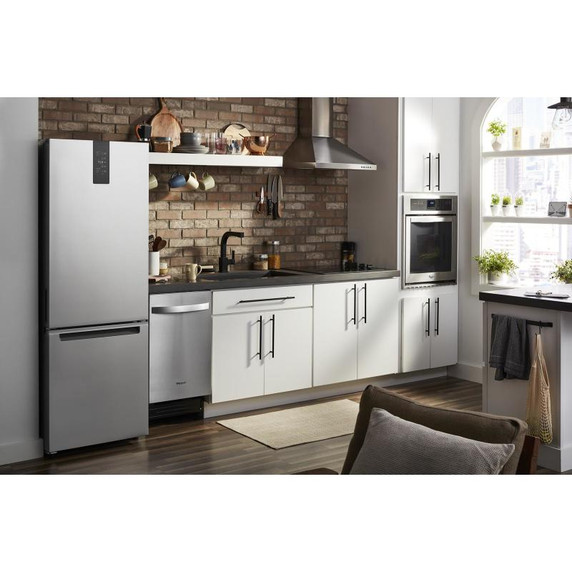

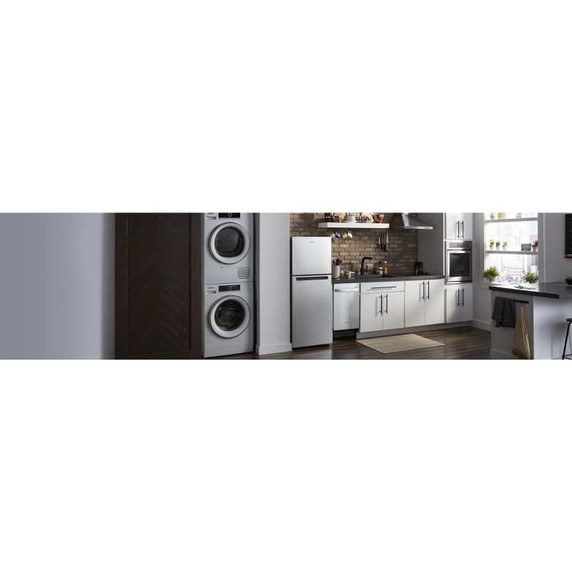

Small Space SolutionCook multiple dishes at once, even in small spaces, with a cooktop made to fit your family's needs.

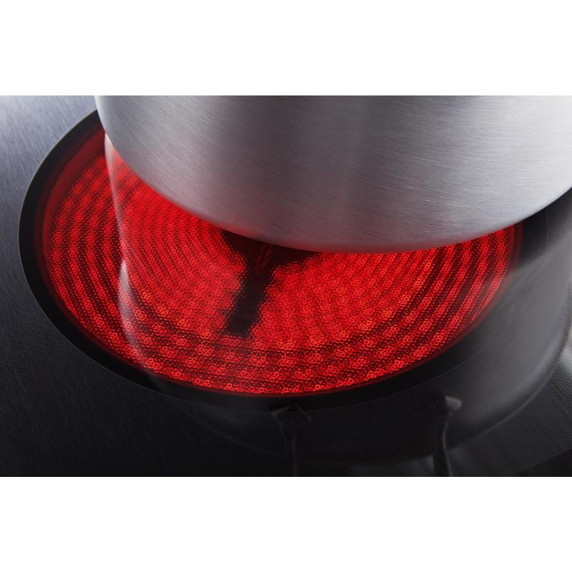

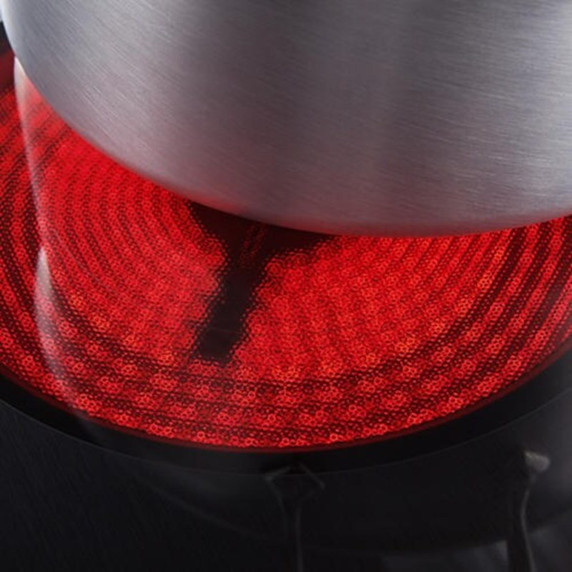

FlexHeat™ Dual Radiant ElementGet two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.
Easy-Wipe Ceramic Glass CooktopWiping up spills is simple with the easy-to-clean cooktop.
30 & 40 Amp InstallationProperly install with either a 30 or 40 amp hookup, so there's no need to rewire.
Hot Surface Indicator LightSee when the cooktop's still hot to the touch, even after it's been turned off, with a light that lets you know.
Wall Oven CompatibleInstall this cooktop to work with a wall oven or on its own for added flexibility.
8" Extra ElementCook small dishes like sides and sauces on the 8" extra element.
6" Extra ElementCook small dishes like sides and sauces on the 6" extra element.
ADA compliantThis cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Controls
Control TypeManual
Knob TypeDishwasher Safe
Control LocationSide
Electrical
Hz60
Power Cord IncludedYes
Volts240
Amps30
208v CompatibleYes
Configuration and Overview
Fuel TypeElectric
Compatibility
Connectivity
Specifications
Country Of OriginUSA
Optional AccessoriesW10355051B
Product To Product PairsWVU37UC4FS
Extended Service Plan ParentEW05IW2Y, EW05IW4Y, EW05IW1Y
Features
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
Power BoostNo
Refinements
Whr CooktopADA Compliant
Certifications
ULYes
ADA CompliantYes
Description
Size In24
Cooktop TypeTraditional
Combinations With OvenWOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0
Cooktop Details
Right Front Element Burner TypeDual
Cooktop ConfigurationAll Burners
Cooktop Element StyleCeran
Left Rear Element Burner TypeStandard
Number Of Cooking Element Burners4
Right Rear Element Burner Power1200W
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Left Front Element Burner TypeStandard
Left Rear Element Burner Power1800W
Left Rear Element Burner Size8in.
Right Front Element Burner Size10in./6in.
Left Front Element Burner Size6in.
Right Front Element Burner Power2500W
Left Front Element Burner Power1200W

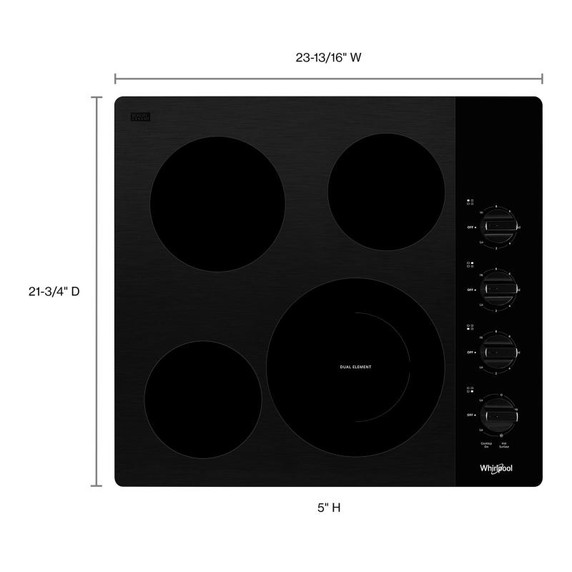

Depth21.75"
Height5.0"
Maximum Height5.0"
Net Weight39.0 lbs.
Width23.81"
Cutout Depth20.38"
Cutout Width21.25"
Carton Depth Inch25.0
Carton Height Inch9.25
Carton Width Inch27.75
