Kitchenaid® Counter-Depth French Door Refrigerator with Intelligent Auto Fill KRFC536SJP
This product is available for pre-order only. Contact us for more information.
Kitchenaid® Counter-Depth French Door Refrigerator with Intelligent Auto Fill KRFC536SJP
This product is available for pre-order only. Contact us for more information.
KitchenAid

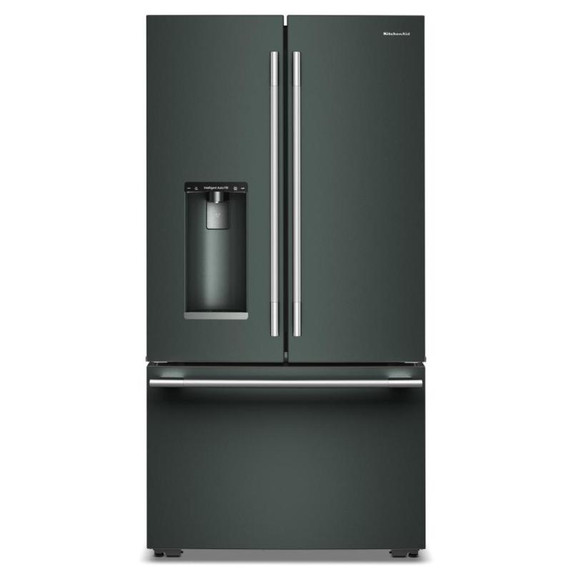

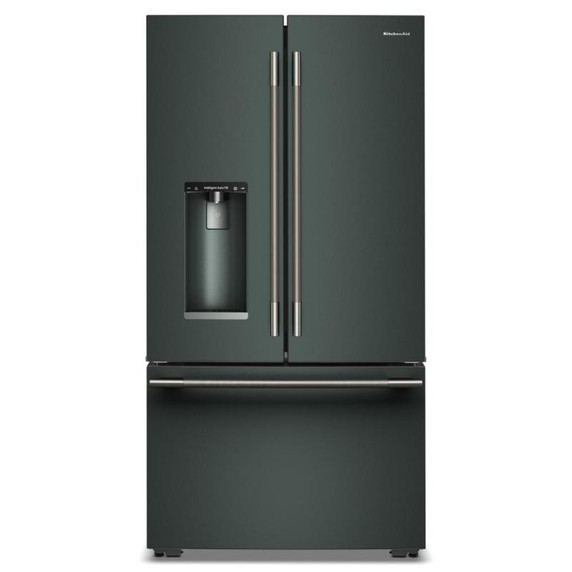

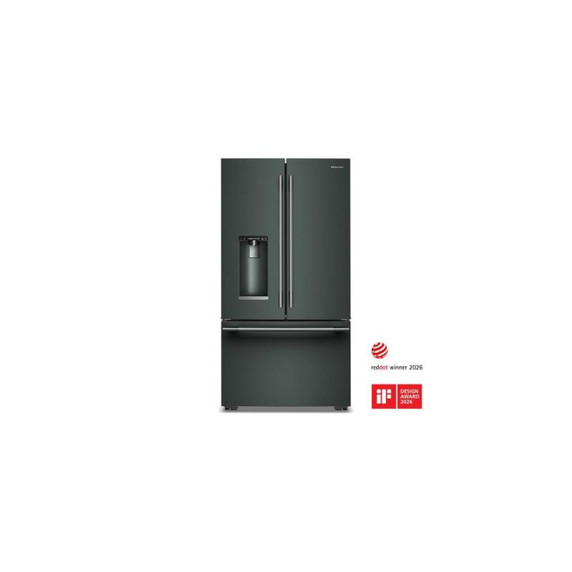

Kitchenaid® Counter-Depth French Door Refrigerator with Intelligent Auto Fill KRFC536SJP

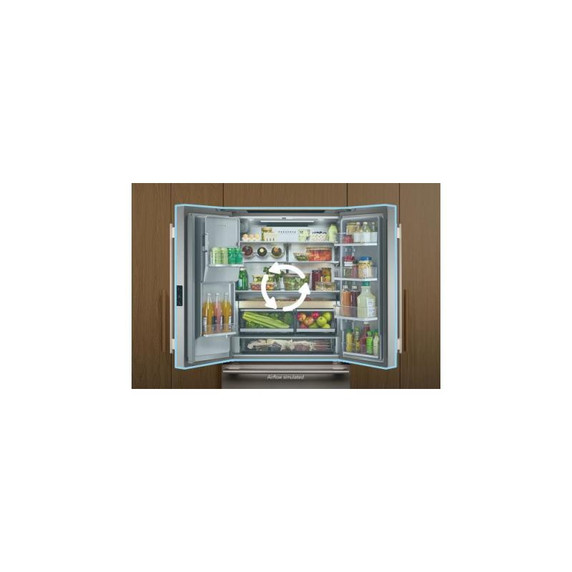

Preserva® Cooling Systemhelps keep ingredients fresh and flavorful. This single evaporator system uses sensors to continually monitor temperature levels in both the refrigerator and freezer and adapts the flow of cold air between them to maintain optimal temperatures throughout.

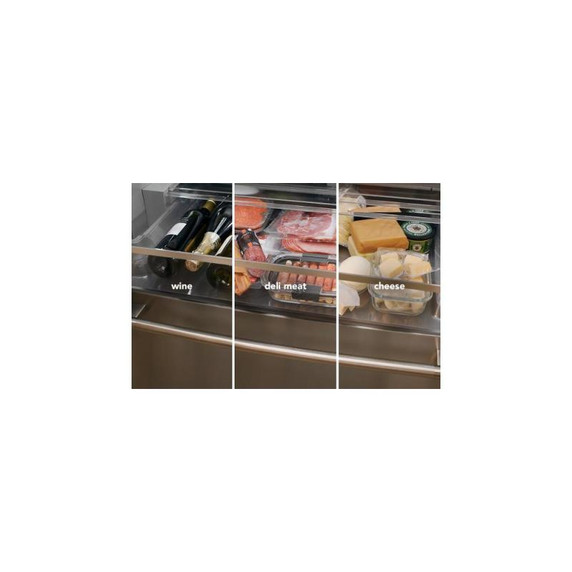

FreshChill™ Temperature-Controlled Full-Width Pantry Drawermakes it easy to customize storage temperatures for different types of ingredients, helping to maintain freshness. Simply touch and select temperature presets for wine, deli, drinks and meat.

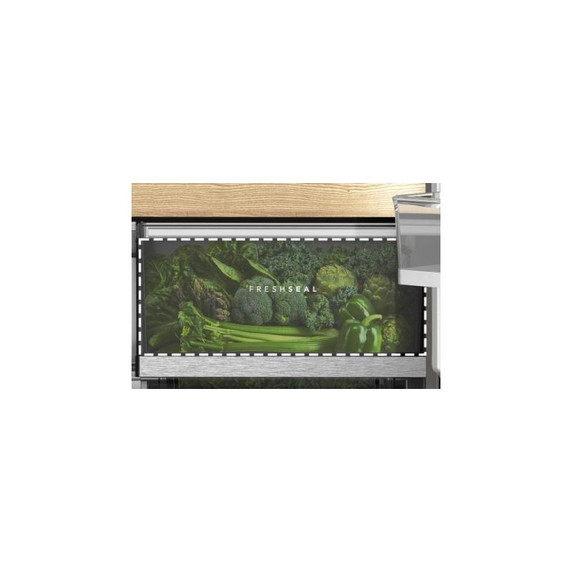

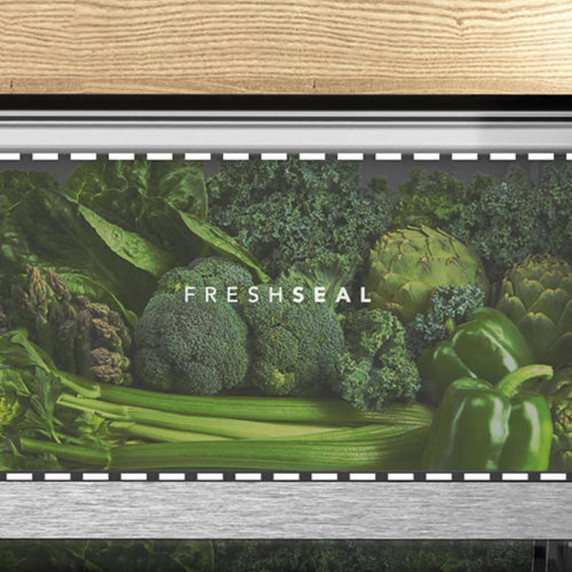

FreshSeal™ Humidity-Controlled Crisper Binshelps keep ingredients fresh, thanks to fully extendable FreshSeal™ gaskets that keep humidity locked in.
Designed to be Personalizedwith a curated palette of exterior finishes and mixed metal hardware. Pick from lush Juniper, warm Black Ore and classic Stainless Steel finishes, all with matching handles. Personalize your hardware with optional handle kits in Brass, Bronze, Black Ore and Stainless Steel.

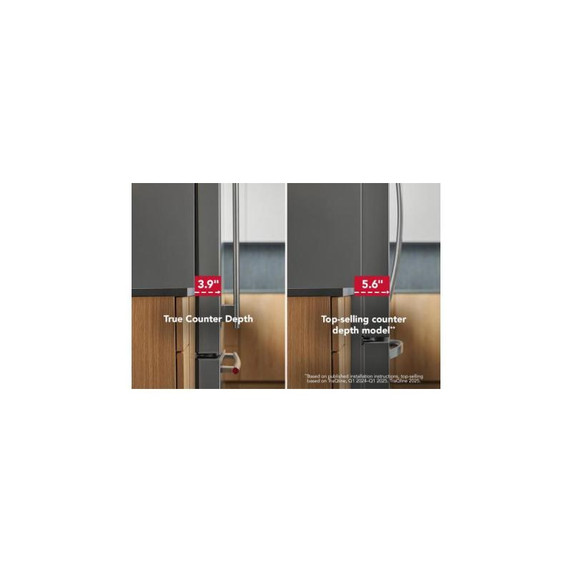

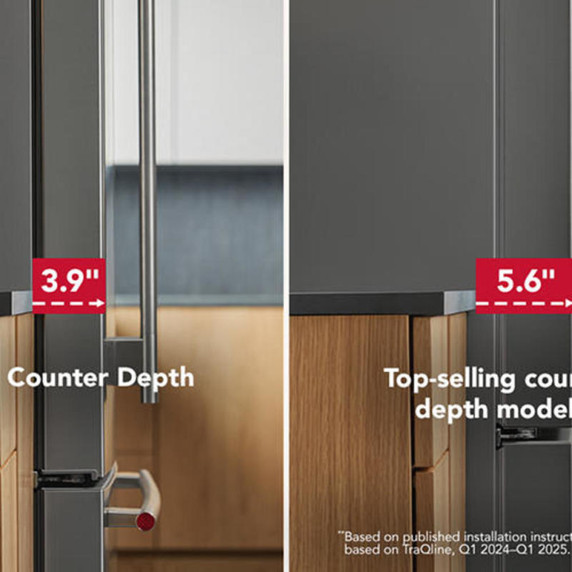

True Counter Depthrefrigerator seamlessly fits* into your kitchen with a built-in look that doesn't stick out from your cabinets and counters. Experience a refrigerator that won't disrupt the flow of your kitchen's design with specially designed hinges that allow the door to open up to 135° degrees.
*Not including doors when installed in standard 25 1/2" cabinet and countertop.

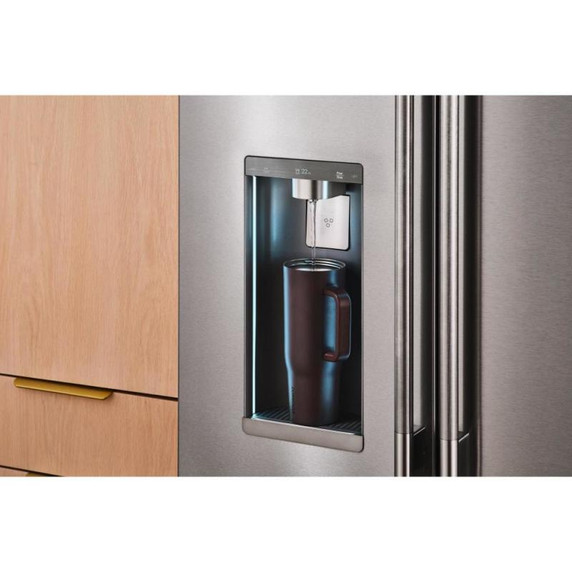

In-Door-Ice® Systemfrees up additional shelf space with a slim-profile ice bin cleverly concealed in the refrigerator door. The ice bin is removable for easy access and produces up to 3.5 lbs of ice per day.
True Clearance Hingeslet you open the refrigerator doors up to 135° making it easy to unload groceries and remove refrigerator shelves while maintaining a True Counter Depth* aesthetic.
*Not including doors when installed in standard 25 1/2" cabinet and countertop
Extra Cold Zonekeeps beverages up to 5°F degrees colder than the rest of your refrigerator without a total freeze. Keep your sparkling water and freshly squeezed juices cold and ready for serving to guests or to enjoy on your own at any time.

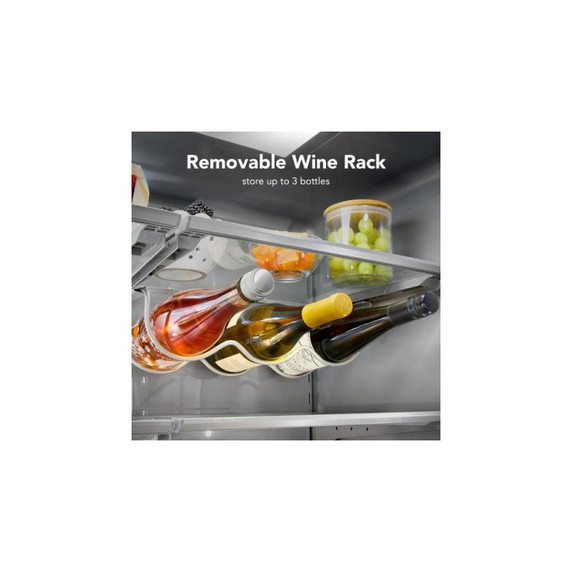

Removable Wine Racklets you store up to 3 bottles of wine or remove completely to make room in your refrigerator for whatever you need.
Signature Platinum Interiorwows from the inside out with premium craftsmanship and design. Wood-look trim, metallic touchpoints, smoked crisper bins and ultra-bright LED lighting pop against the stunning silver-colored finish.
Ultra-Bright LED Lightingturns on when the refrigerator doors or drawers are open, making it easy to find items inside.
Max Coolhelps quickly chill recently loaded groceries to help keep them fresh by setting the refrigerator compartment to the lowest temperature level for up to 24 hours.
Max Freezelets you drop freezer temperature to coldest level at the touch of a button (-8F), so frozen goods can reach optimal temperatures. After 48 hours, the temperature will automatically be restored to the previous setting.
Adjustable Glass Shelvinglets you accommodate your trickiest jars, glasses or containers. Shelves are fully removable for easy cleaning and customization.
Wood-Look Sliding Storage Traykeeps serving platters and ingredients easily accessible. The tray removes fully for easy cleaning.
Two-Tier Freezer Drawerconveniently organizes frozen foods so they're easy to find. An adjustable storage divider in the lower drawer, pizza pocket and flat-item shelf help keep smaller items from getting lost under larger ones.
Smart Refrigeratorlets you control your refrigerator from your phone with the KitchenAid TM App. Change your refrigerator's temperature remotely, and get notifications for when the door is left open or when your water filter needs to be replaced so you can easily order a new one.*
*Appliance must be set to remote enable. WiFi & App Required. Features subject to change. Details and privacy info at kitchenaid.com/connect.
everydrop® Water Filteris easy to install, replace, and use. This filter reduces 75 potentially harmful contaminants like microplastics and lead while giving you clean, fresh-tasting water for recipes and drinks
Controls
Door Ajar Open AlarmYes
Max Cool Fast CoolYes
Sabbath ModeYes
Water Filter Indicator ResetYes
Control LockoutYes
Control LocationSide Door
Electrical
Volts115
Amps4
Freezer Compartment
Door TypePull-Out
Door BinsPizza Pocket
LightYes
Freezer Drawer Basket1 Full Width Lower Plastic with Adjustable Divider; 1 Full Width Upper Plastic
Icemaker
Icemaker LocationRefrigerator Door
Filters
Fresh Flow Air Filter IncludedNo
Produce PreserverNo
Water Filter LocationInterior
Water Filter Part NumberEDRARXD1
Compatibility
Works With
ConnectivityWiFi
Dispenser
Dispenser TypeExterior Ice and Water
Types Of IceCrushed/Cubed
Dispenser OptionsControl/Child Lock; Filtered Ice; Filtered Water; Intelligent AutoFill; Light; Paddle
AHAM Volumes And Shelf Area
Freezer Volume Cu Ft6.57
Refrigerator Volume Cu Ft16.09
Total Volume Cu Ft23.1
Specifications
Fingerprint ResistantNo
Country Of OriginMexico
Extended Service Plan Parent
Product To Product Pairs
Optional AccessoriesEDRARXD1B
Launch DateMay 2026
AestheticNew Design
CustomizableYes
Ebl AccessoriesW11777156, W11777157, W11777158, W11777159
Certifications
ULYes
Energy Star QualifiedYes
Cee TierTier I
ADA CompliantNo
Energy Rating Kwh Year569
Star K CertifiedStar K Certified
Exterior
Door FinishSmooth
Handle MaterialMetal
Hidden HingeYes
Reversible DoorNo
Door StyleContour
Handle TypeReach Through Handle
Cabinet FinishTextured
Number Of Doors3
Handle ColorJuniper
Cabinet ColorJuniper Green
Configuration
Installation ConfigurationFreestanding
Description
Type Of RefrigeratorFrench Door
Details
Counter DepthYes
Cooling TypeSingle Evaporator
Refrigerator Compartment
LightingLED
Pantry DrawerYes
Supplementary ContainersN/A
Spill Proof Glass ShelvesNo
Temperature Controlled Drawers1 Full-Width Pantry
Liner FinishPlatinum
Conventional Shelves1 Fixed Full-Width Glass; 1 Slide-Out - Wood Finish; 4 Adjustable Half-Width Glass
Number Of Interior Shelves6
Door Bins2 Fixed Full-Width; 3 Adjustable Gallon; Extra Cold Bin Full Width
Carton Depth36.8"
Carton Height74.2"
Carton Width40.8"
Gross Weight360.0 lbs.
Net Weight345.0 lbs.
Depth Closed Including Handles32.13"
Height69.88"
Width35.63"
Cabinet Width35.63"
Cutout Height70.13"
Depth Excluding Doors25.0"
Popular Height70 Inch Tall
Popular Width36 Inch Wide
Depth Closed Excluding Handles29.44"
Depth With Door Open 90 Degree44.25"
Depth32.13"
Cutout Width36.0"
Height To Top Of Cabinet68.88"
Height To Top Of Door Hinge69.88"
This product has Extended Service Plans available**
