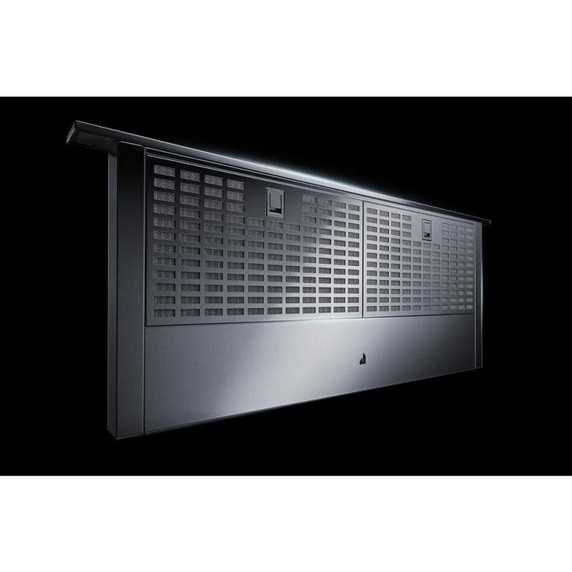

Jennair® Euro-Style Stainless 36 Telescoping Downdraft Ventilation JXD7036YS
JennAir Luxury Redefined Event, April 1 - June 30, 2024. Save 10% when you purchase 1 qualifying JennAir® product. Save 15% when you purchase 2 or 3 qualifying JennAir® products. Save 20% when you purchase 4 qualifying JennAir® products. Save 25% when you purchase 5 or more qualifying JennAir® products. Qualifying purchases must be made between April 1 - June 30, 2024.
600 CFM High-Performance BlowerA single centrifugal blower motor design allows the ventilation system to operate at up to 600 CFM to quickly remove smoke, steam and cooking odors.
14-Inch (35.6cm) RiseVent rises a full 14 inches (35.6cm), so it's far enough above the cooktop to capture steam from tall stockpots and other cookware.
Reversible Motor BoxDesigned for flexibility, the reversible motor box can be positioned to face the front or back of cabinets to accommodate more installation options.
Four Fan Speed SettingsFour different settings on this luxury telescoping downdraft ventilation allow you to control the ventilation level for optimum performance and energy efficiency.
Dishwasher-Safe Premium Mesh FiltersThese aluminum mesh filters, which effectively capture smoke, grease and cooking odors as they’re drawn through the hood, can be easily cleaned in the dishwasher.
6-Inch Round Exterior VentingThe 6-inch round exterior ventilation system allows ductwork to extend through an outer wall or the roof of a home.
3 1⁄4" x 10" Rectangular Exterior VentingThe 3 1⁄4" x 10" rectangular exterior ventilation system allows ductwork to extend through an outer wall or the roof of a home.
Hidden Slide ControlsThis luxury telescoping downdraft ventilation achieves its sleek appearance with controls that are hidden from sight.
Automatic Shutoff When RetractedThis feature provides peace of mind by ensuring that the blower will always be turned off once the hood has been lowered into the countertop.
Integrated StylingThis luxury telescoping downdraft ventilation, which integrates into countertops and islands, allows you achieve a streamlined look.
Slim ProfileThe telescoping downdraft ventilation’s slim profile takes up minimal space on a countertop or island.
Electrical
Volts120
Hz60
Amps15
Certifications
ULYes
Specifications
Extended Service Plan ParentEW07IW1Y
Country Of OriginMexico
Optional AccessoriesW10446914, W10387677, W10446915
Description
Size In36
Hood TypeRetractable Downdraft
Ventilation System
Duct DirectionVertical
Duct TypeRound
FiltersGrease Filters
Cfm Motor Class600
Number Of Speeds4
Duct Outlet Size In3.25 W x 10 H
VentingExterior
Sound Max Speed Sones7.9
Controls
Control LocationHidden
Control TypeManual
Carton Depth39.5"
Carton Height21"
Carton Width35"
Depth20.0"
Gross Weight100 Kg.
Height28.88"
Width36.0"
Volume16.8
